Delivery:
Current Delivery: 7 - 10 days

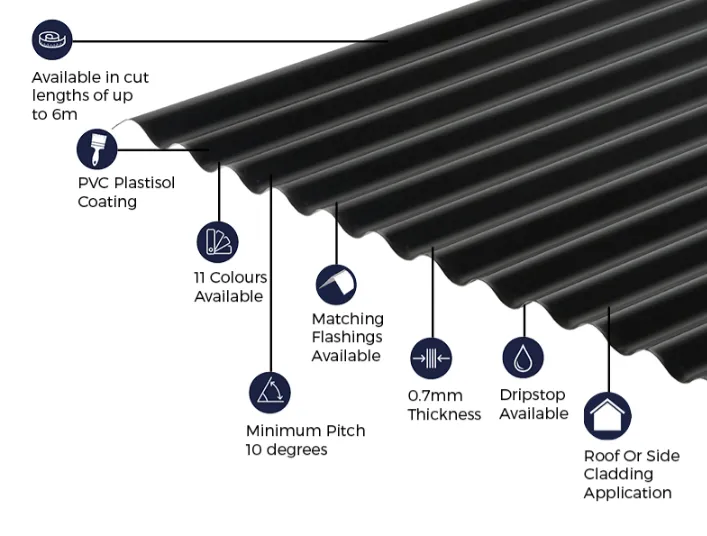

Key Features:

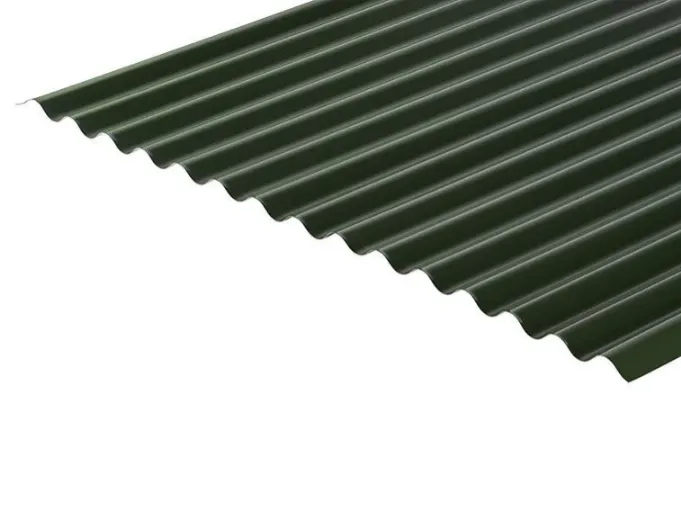

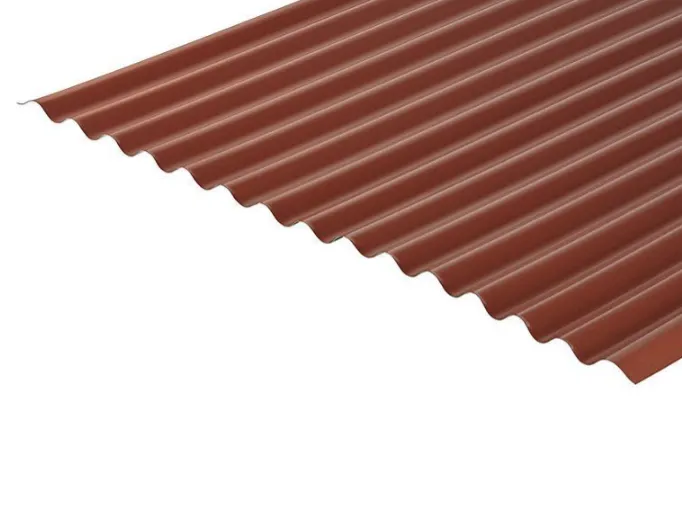

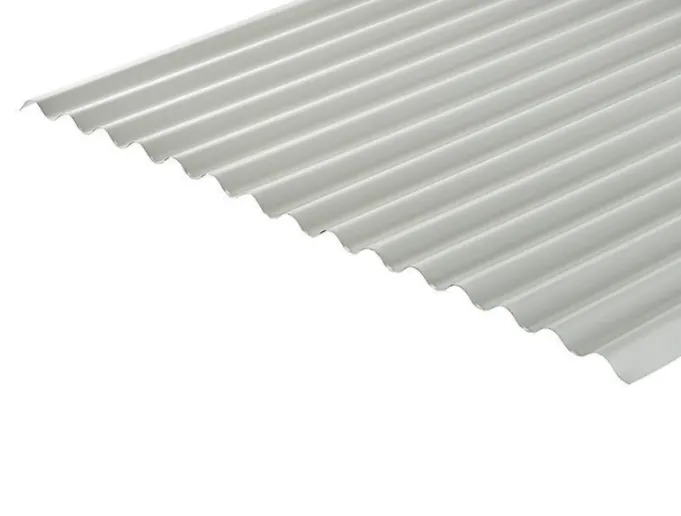

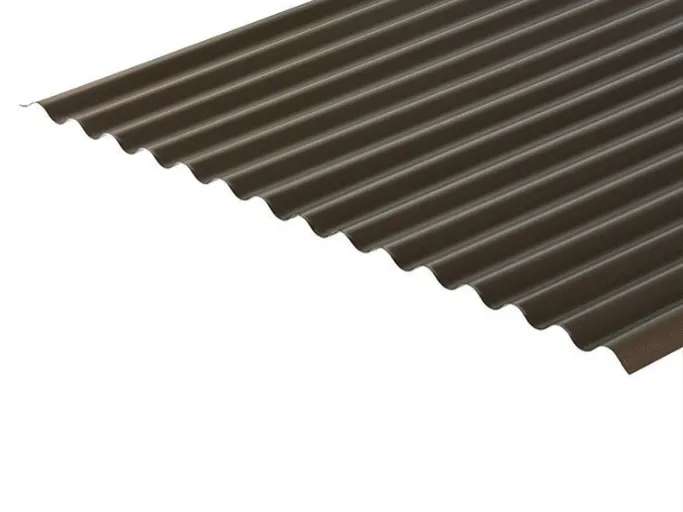

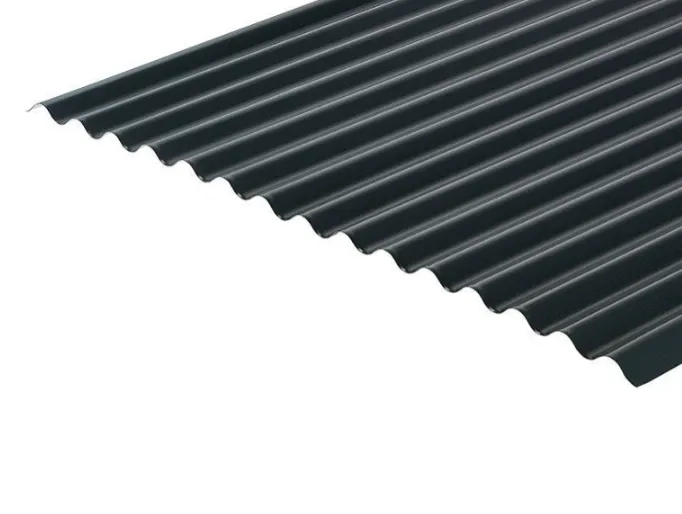

- External Finish: PVC Plastisol (please select colour)
- Internal Finish: Off White
- Sheet Material: Galvanised Steel

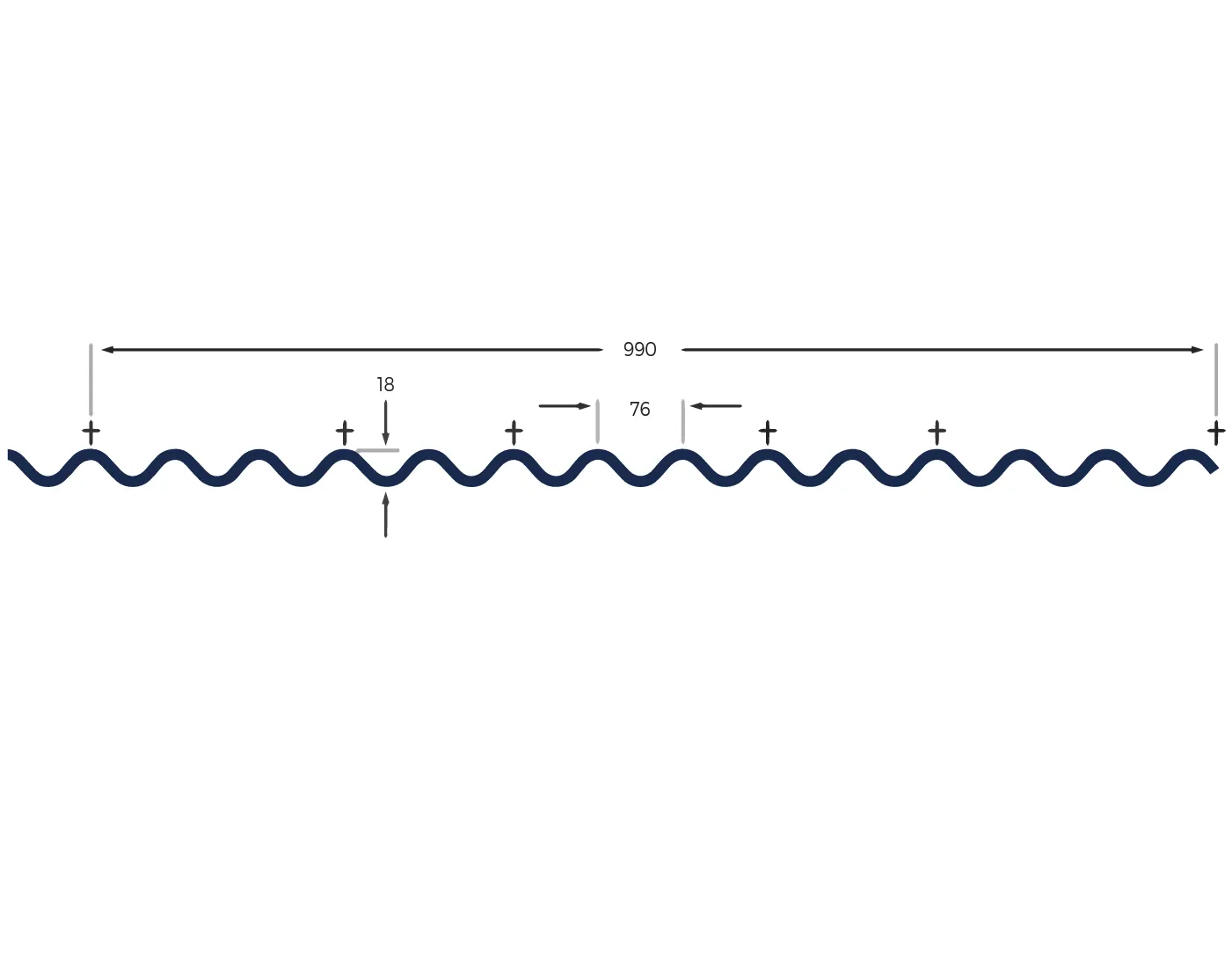

- External Face: Corrugated 13/3 profile (13 profiles of 3 inches when lapped), 18mm profile height, 76mm pitch
- Width: 990mm (when lapped)
- Length: Cut to size 1000mm - 7000mm
- Gauge thickness: 0.7mm
- Weight: 6.9kg/m2
- Application: Wall or Roof
Description:
Dripstop is a proven, economical way of stopping the underside of a metal roof dripping with condensation on uninsulated panels, by trapping and releasing water droplets back into the air. Dripstop membrane turns steel sheeting into anti-condensation roof sheets and is designed to reduce dripping, or running condensate, by creating a vapour barrier on metal roofing panels in buildings with moderate to high levels of humidity.
Dripstop creates a medium for trapping moisture in specially designed pockets formed in the felt membrane. As moisture condenses in high temperature and humidity conditions, Dripstop controls how cyclical condensate forms onto the underside of steel roofing. It does not prevent condensation from forming and, when working correctly, feels damp to the touch.
To help Dripstop work effectively, it is recommended to have a pitched roof of 10 degrees or more. Any lower than this and the shallow angle will cause the water droplets to drip down off the sheet without effectively evaporating back into the environment.

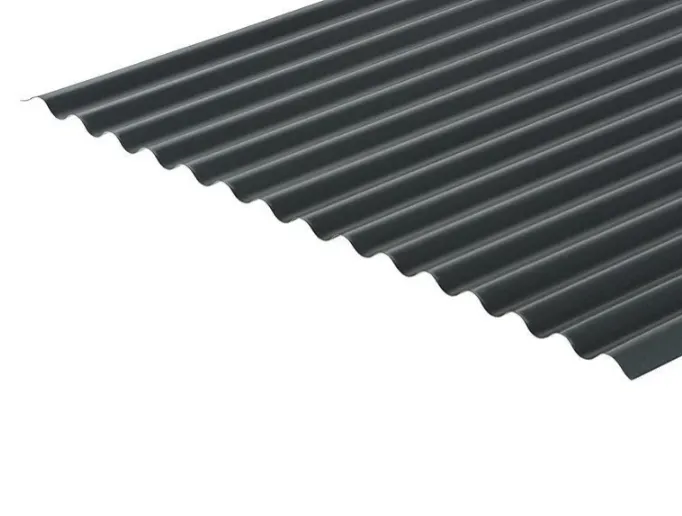

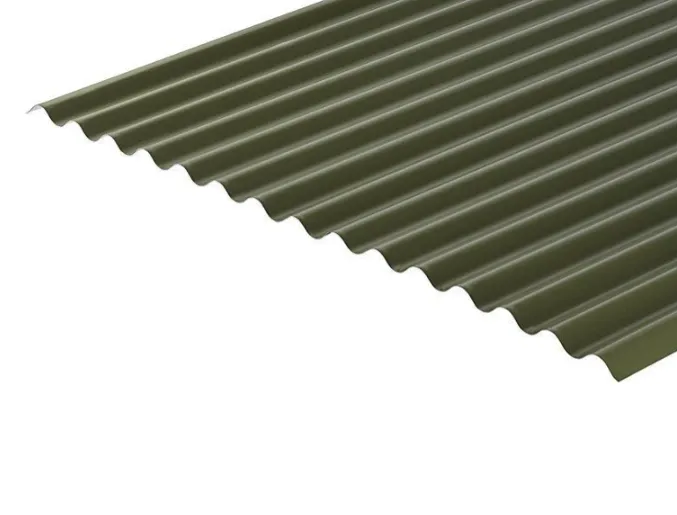

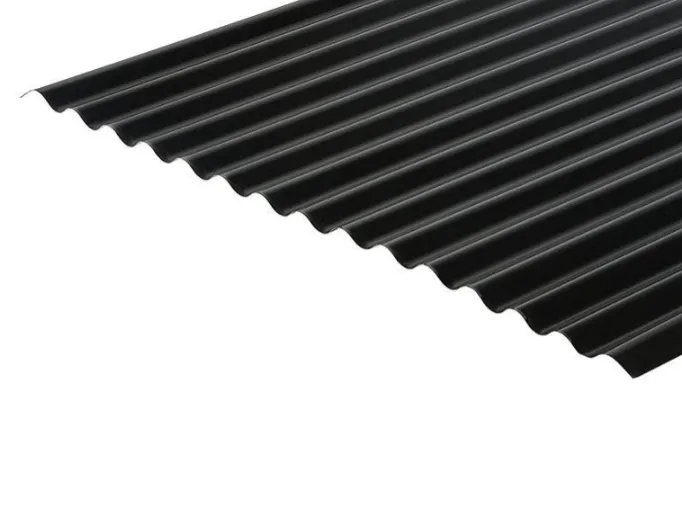

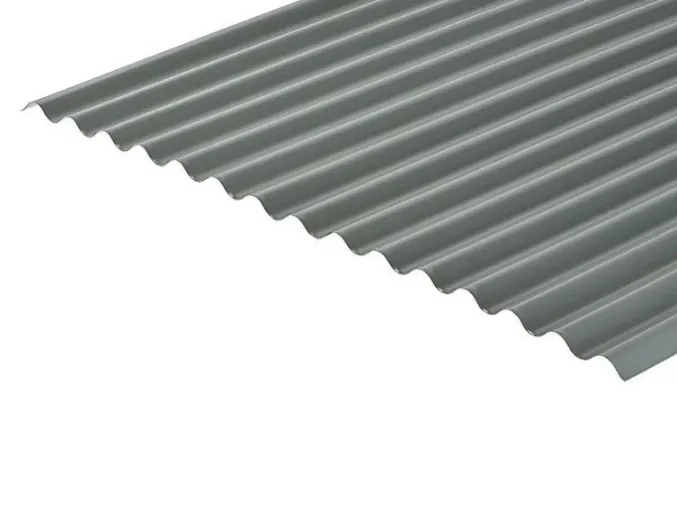

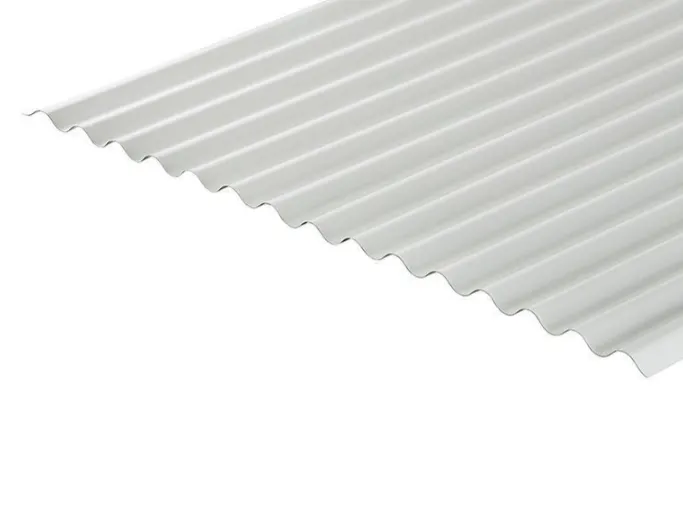

Cladco 13/3 Corrugated Roofing Sheets with a PVC Plastisol Coat feature 13 corrugations, each 3 inch/76mm. Corrugated Roof Sheets give a total width coverage of 990mm when installed. Galvanised Corrugated Roof Sheets are available in a range of colours and in 0.7mm thickness. Please note, it is recommended to use the with these sheets.

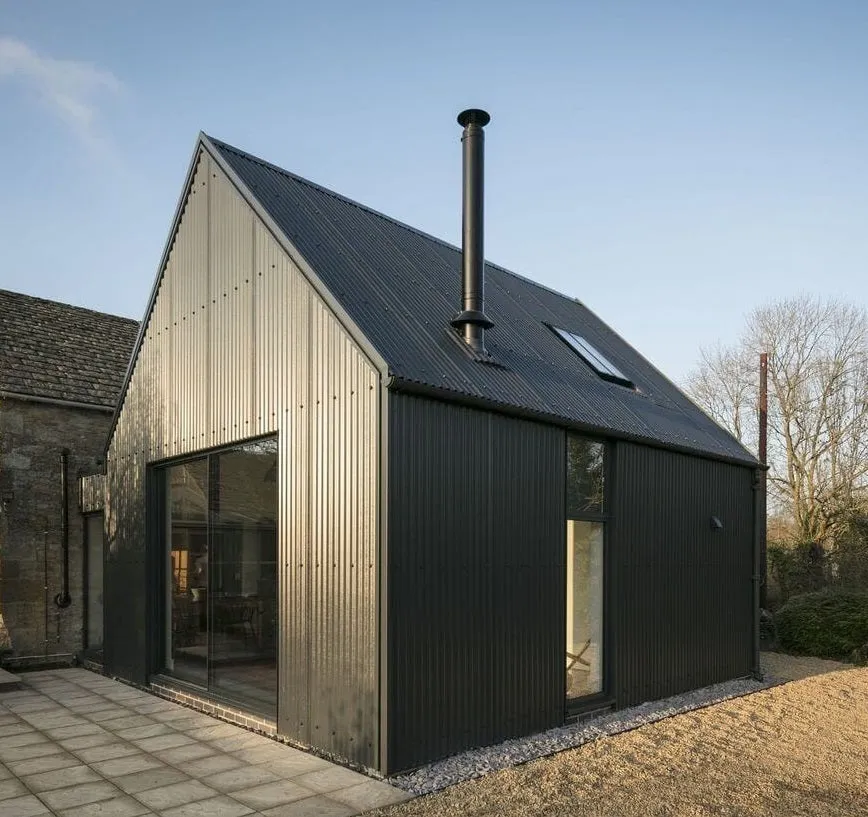

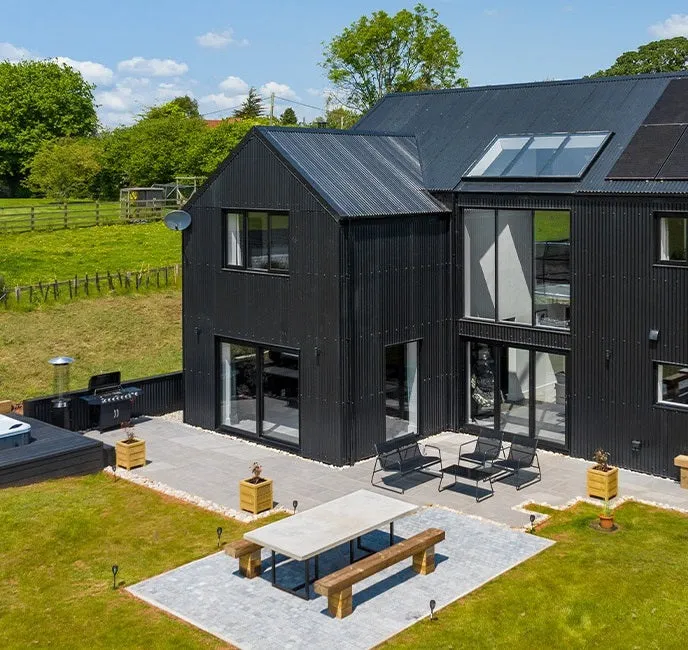

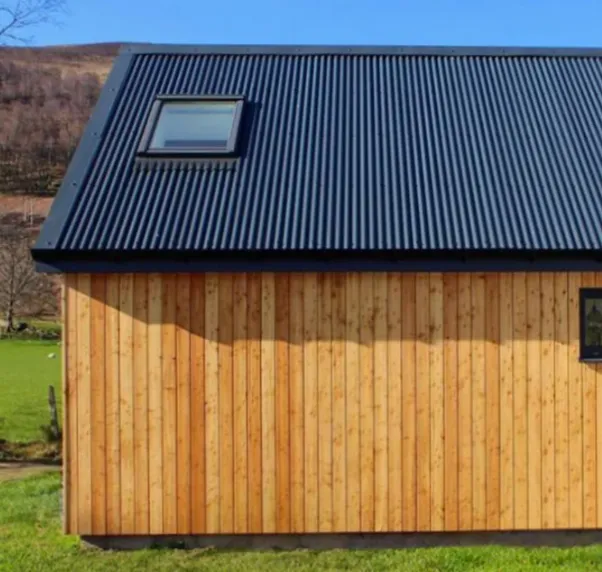

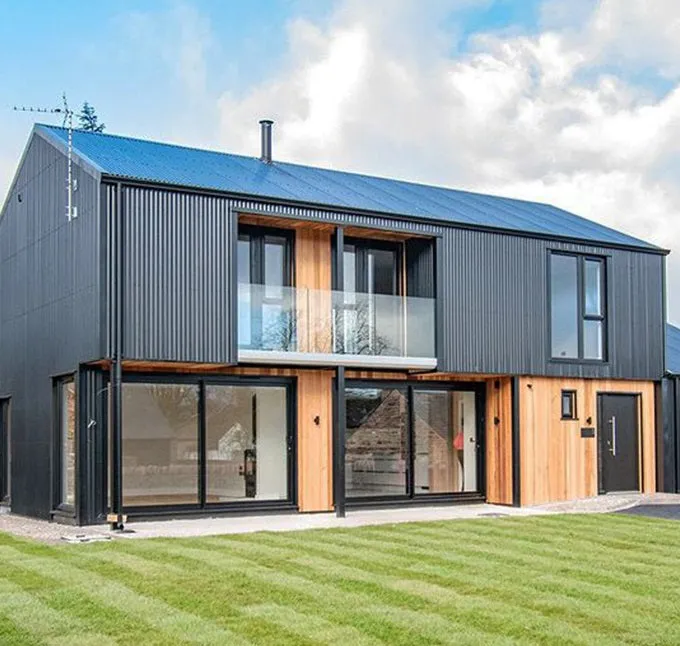

Mainly used as roofing on industrial, domestic, commercial and agricultural buildings, these single-skin steel Corrugated Roof Sheets can be used over clad an existing roof, part of an insulated build-up system, or purely as single-skin roofing.
Construction using this type of Corrugated Sheet can be safely undertaken down to a 10-degree pitch using Self-Drilling 65mm Screws with BAZ Washers on the top part of the 13/3 profile. Please refer to our Installation Guide for more information.
PVC Plastisol Coating provides a life typically 15 to 25 year to first maintenance or repaint, with a life in excess of 40 years. This coating also provides a high resistance to scratching and damage.
The lightweight corrugated sheets are easy to fit, making your installation fast and easy. Cladco Corrugated Sheeting is available in a range of colours, thicknesses and finishes and are independently-tested to current CE EN 14782 requirements.
